eco clipper ® mowing systems

eco clipper ®  economic large area mowing systems built from experience.

The eco clipper mowing system is aimed at the regular maintenance of large areas of cultivated turfgrass as can be found on sporting grounds and turfgrass farms. It is an alternative for cylinder mowing and approximates the finishing quality of a well set up and operated cylinder mower for considerably less costs.

The eco clipper mowing system has many advantages over the traditional cylinder mowing system. Three fast spinning and sharp high lift blades per meter cutting width, combined with a smooth deck, deliver a clean cut and even clipping dispersion. Even under wet mowing conditions the clippings are equaly dispersed. What’s more is that, depending on conditions, the system allows high mowing speeds up to 30 km/h without diminishing the cutting results.

Because of these features the eco clipper mowing system can be scheduled to mow the fields in a regular manner virtually independent on weather conditions. This means control on the amount of clippings that are produced each mowing cycle, avoiding the need to remove excess clippings after wet periods and grow a strong root base in shorter time.

The eco clipper ® mowing system

The base of the mowing system is an independently suspended 106 cm wide mowing module with 3 rotary blades. The deck modules are linked together in larger, but flexible contour following mowing decks.

The decks can be attached to two types of frame, carried or towed. A front mower can consist out of a single deck consisting out of 2 till 6 modules. A towed mower can be of 8 till 14 modules wide, built out of 3 separate decks. A carried rear mower, combined with a front mower also can be 8 till 14 modules wide.








eco clipper® mowers are the economical solution for mowing large area turfgrass:

  • High quality finish
  • High capacity
  • Contour following
  • Cutting height: 20 till 90 mm
  • Minimal soil compaction
  • Good dispersion of clippings
  • Insensitive for wheather conditions
  • Efficient electric drive (10 - 20 % fuel reduction)
  • Low noise
  • Low in maintenance
  • Built with experience
eco clipper | economic mowing systems built from experience

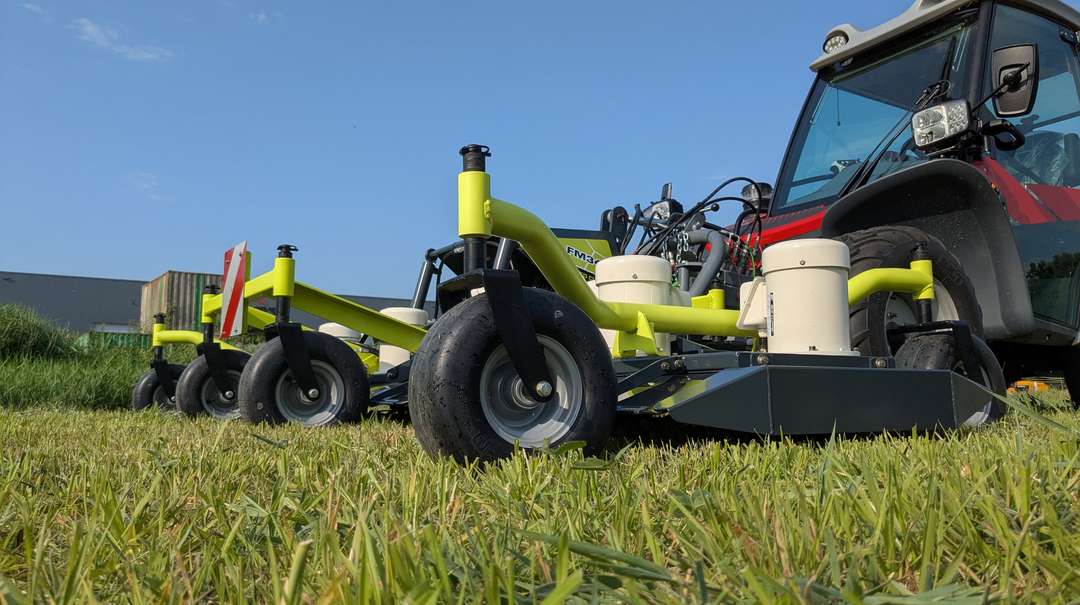

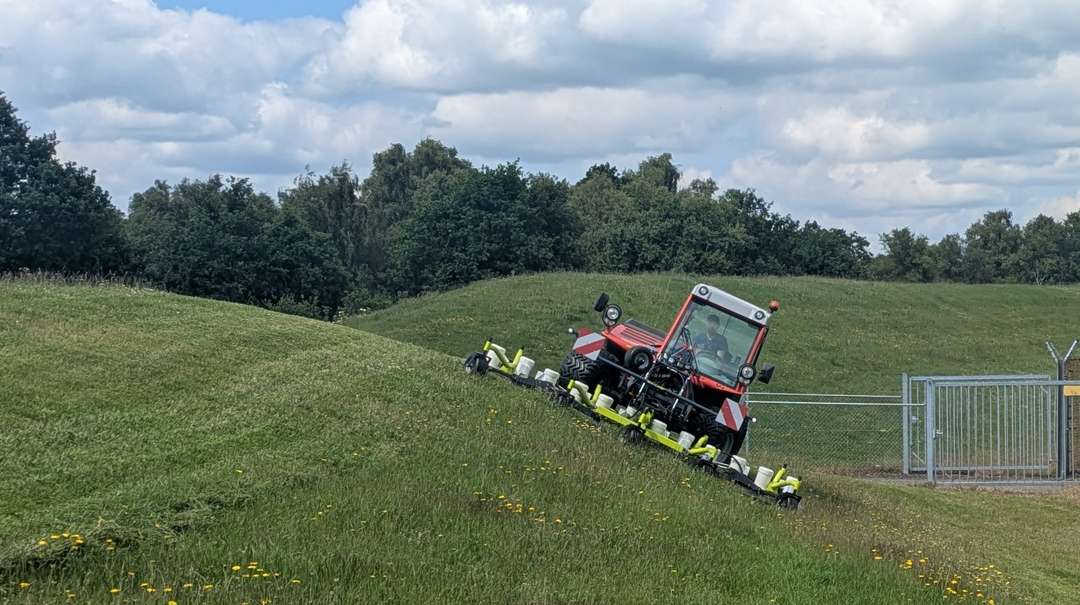

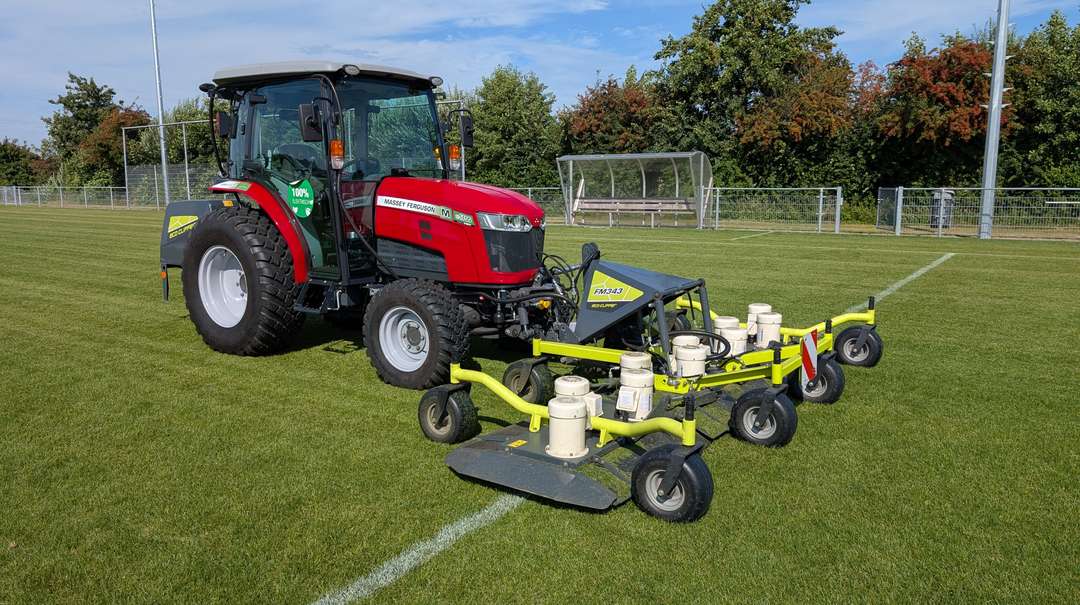

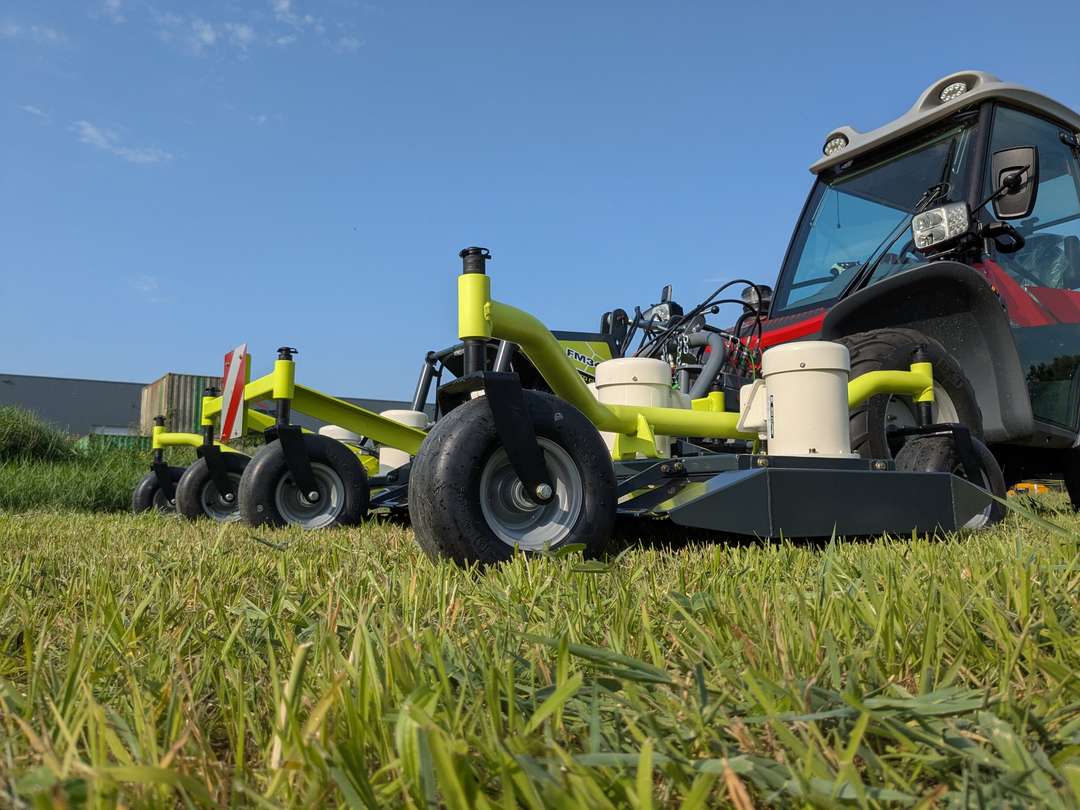

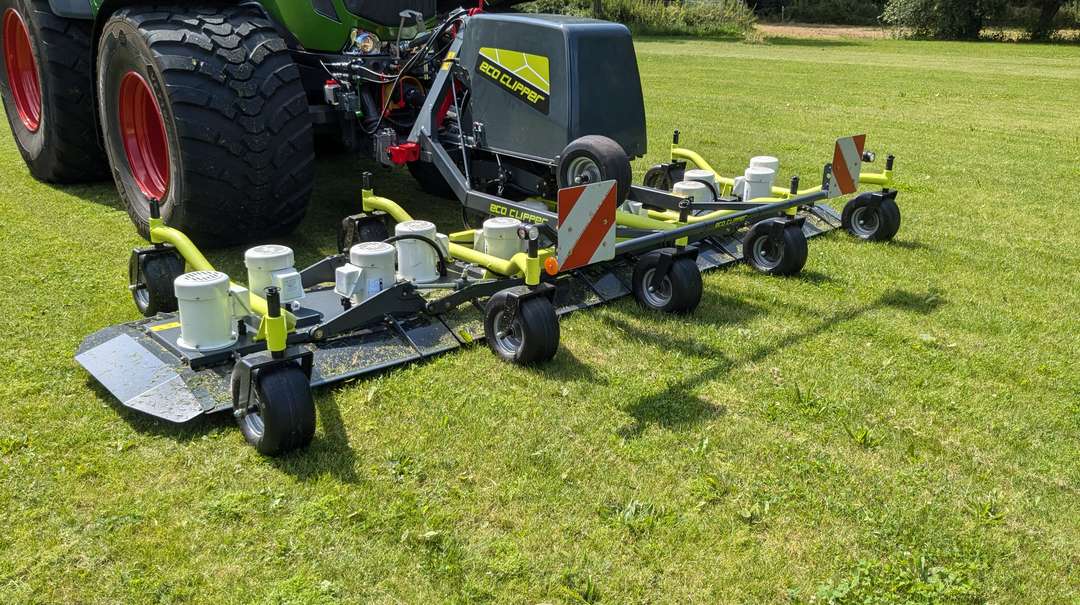

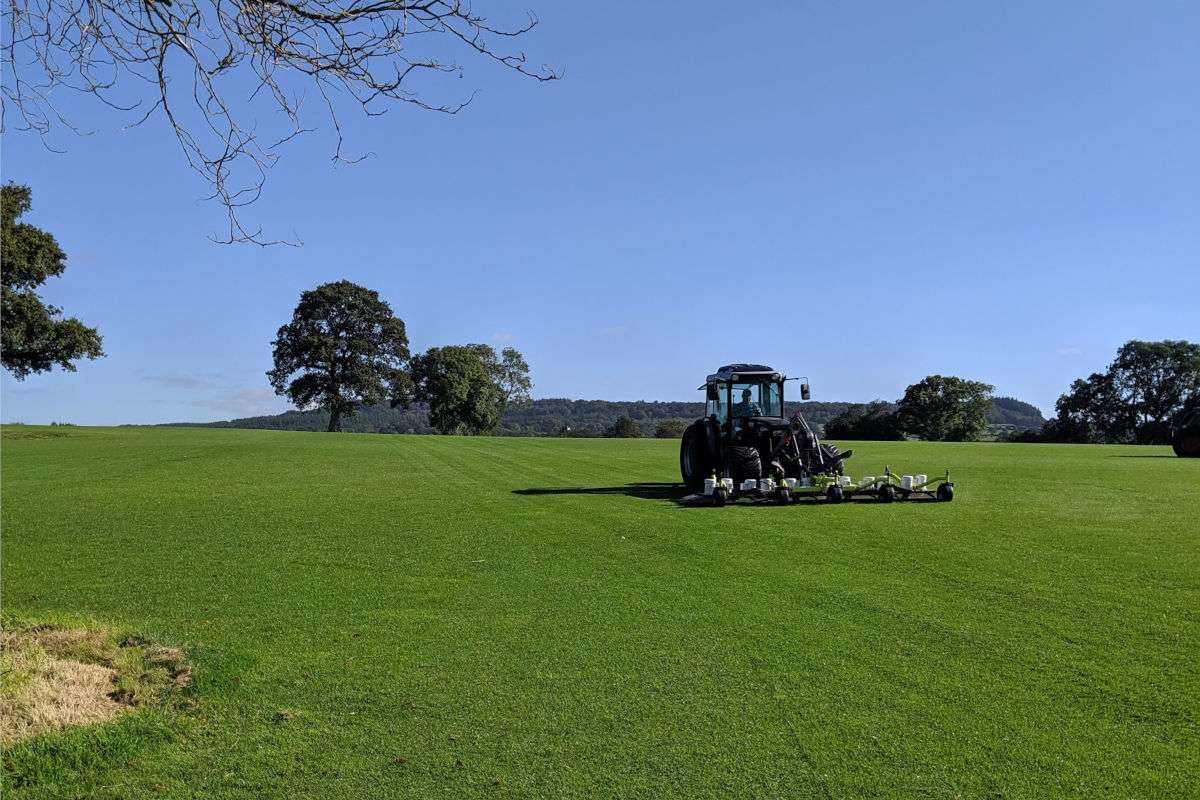

Front Mounted eco clipper® Mowers


eco clipper® offers two different widths of front mounted mowers:

  • 4 modules with 411 cm cutting width
  • 6 modules with 615 cm cutting width

These versions are suitable for mowing sporting grounds as well as sod farms.



eco clipper | economic mowing systems built from experience


The standard versions have a quick hitch coupling with the generator on the front. This means a 1000 rpm front PTO is required. On request it is possible to shift the generator to the rear of the tractor with an extra generator module.


eco clipper | economic mowing systems built from experience
eco clipper | economic mowing systems built from experience

EC-FM4

Cutting width:         411 cm  Transport width:     240 cm   Weight (incl gen.):  820 kg Weight (excl gen.):  640 kg Advised tractor:       60 hp

eco clipper | economic mowing systems built from experience

EC-FM6

Cutting width:          615 cm  Transport width:      240 cm     Weight (incl gen):    1040 kg     Weight (excl gen.):   860 kg Advised tractor:        80 hp

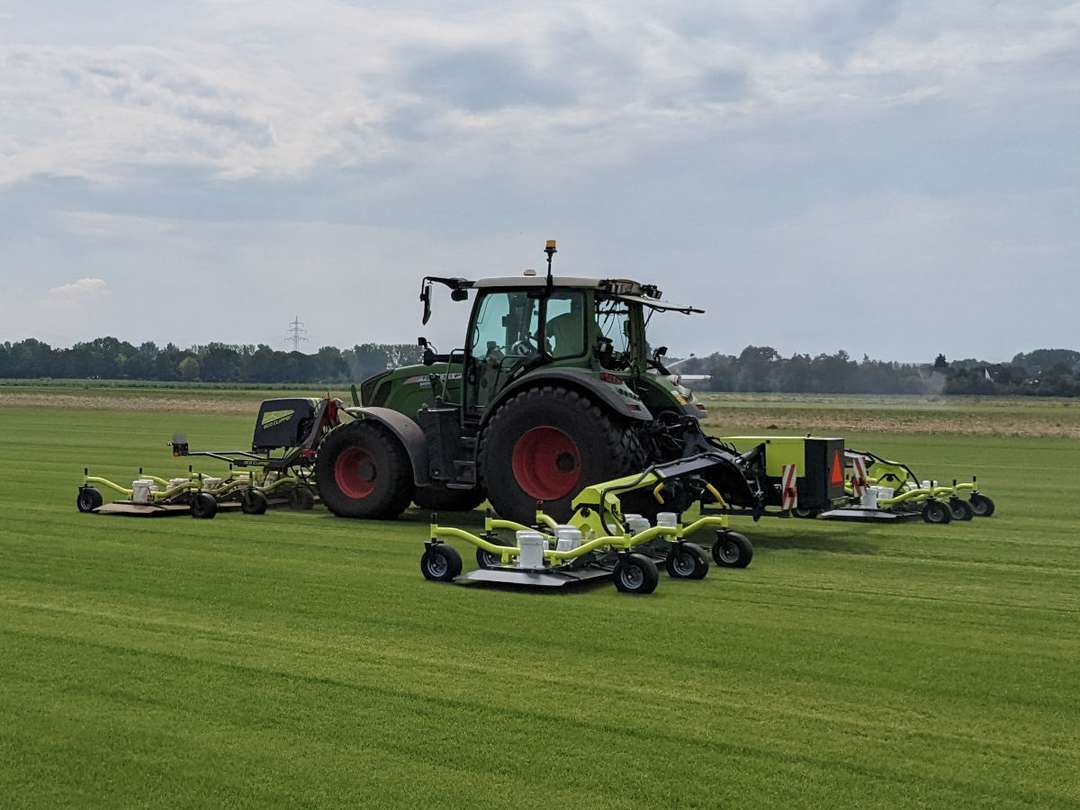

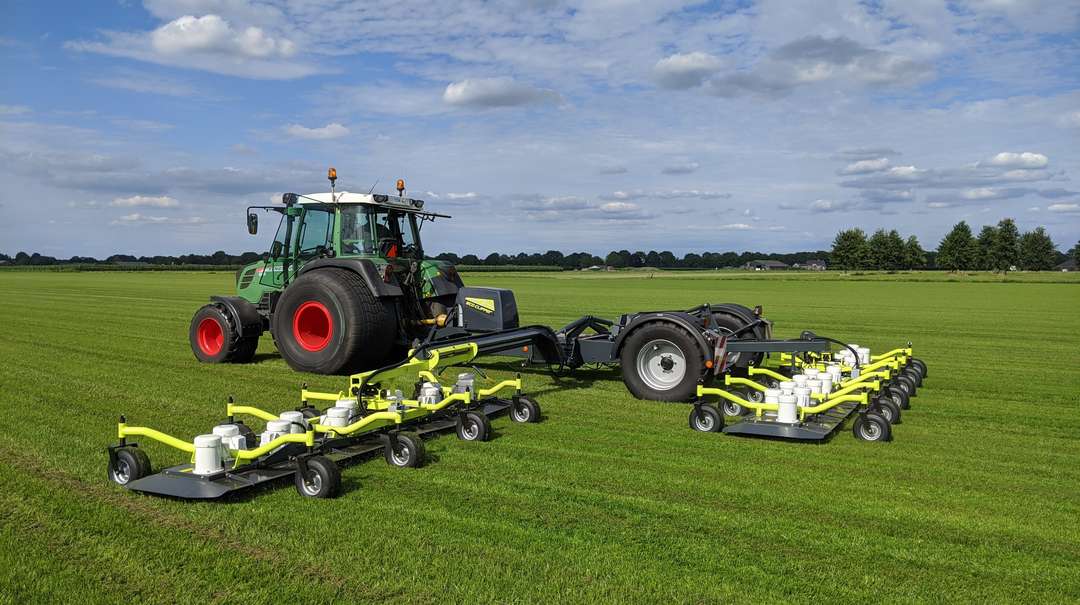

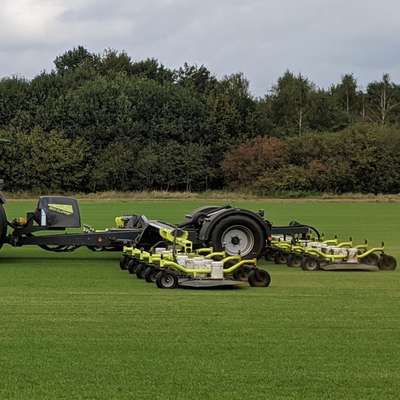

Combination eco clipper® Mowers


For larger cutting widths than 6 meters you can combine a front mounted mower with a rear mower section to a triple type  combination mower from 8 m up till 14 m cutting width.

We offer combinations with the EC-FM4 4 m front mower from 8 till 12 m total cutting width and with the EC-FM6 6 m front mower in 12 m and 14 m cutting width.

The front mower can be supplied with its own generator, enabling independent use, or without generator for tractors without front PTO.

eco clipper | economic mowing systems built from experience
eco clipper | economic mowing systems built from experience

The following three models can be combined with the EC-FM4 4 m wide front mower. All models are supplied with side arm collision protection. The EC-RM10 and EC-RM12 have a 50 cm side shift on each arm for changing the cutting width.

There are two generator options:

  1. two generators on front and rear
  2. one larger generator on rear: no front PTO required

eco clipper | economic mowing systems built from experience




EC-RM8

Cutting width:   800 cm                        Weight:              1200 kg                         Tractor power:  100 hp

eco clipper | economic mowing systems built from experience


EC-RM10

Cutting width:    1005 cm                      Weight:               1600 kg                        Tractor power:   120 hp



eco clipper | economic mowing systems built from experience



EC-RM12

Cutting width:    1206 cm                      Weight:               1950 kg                         Tractor power:   140 hp



eco clipper | economic mowing systems built from experience

The following two models can be combined with the EC-FM6 6 m wide front mower. All models are supplied with side arm collision protection. The EC-RM12/6 and EC-RM14 have a 150 cm side shift on each arm for changing the cutting width.

There are two generator options:

  1. two generators on front and rear
  2. one larger generator on rear: no front PTO required





eco clipper | economic mowing systems built from experience

EC-RM12/6

Cutting width:   1206 cm  Weight:              1700 kg           Tractor power:  140 hp


eco clipper | economic mowing systems built from experience




EC-RM14

Cutting width:   1411 cm  Weight:              2050 kg             Tractor power:  160 hp

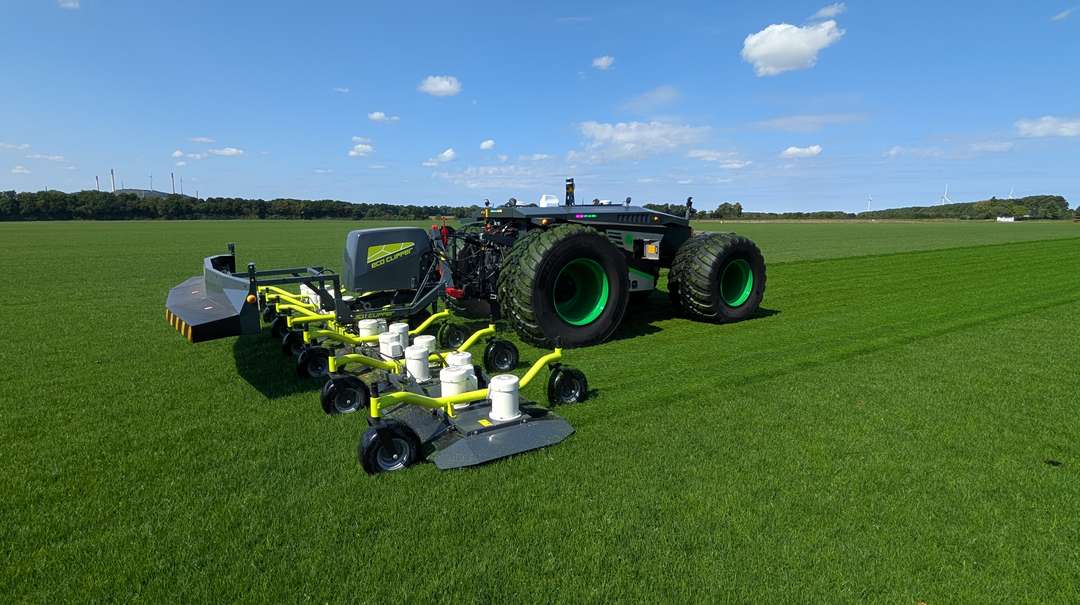

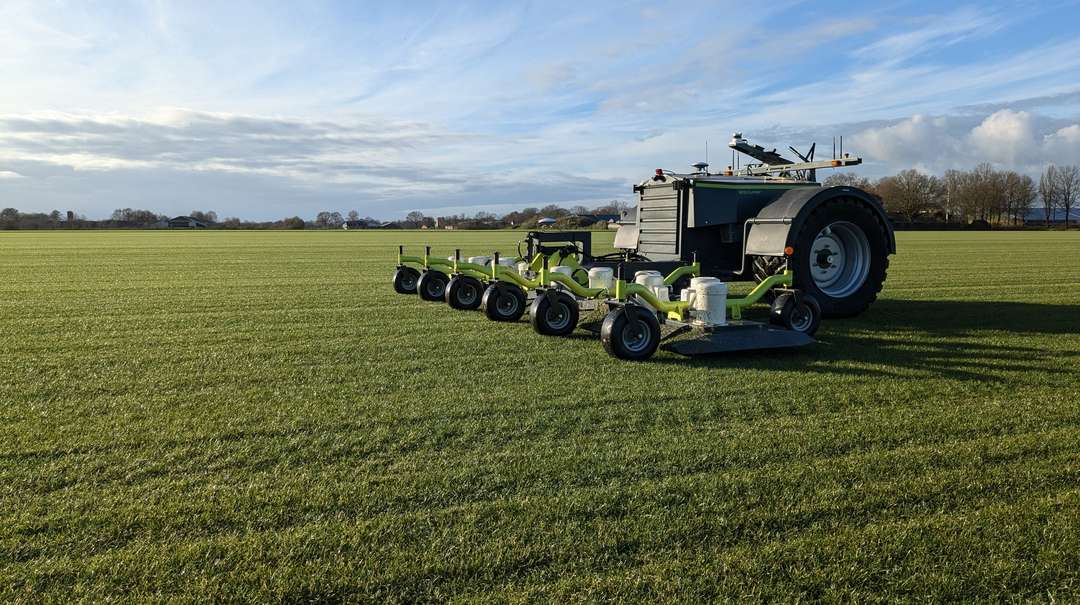

Tri-Deck eco clipper® Mowers


Based on eco clipper's flexibly linked mowing deck system we can configure the tri-deck mower that suits you. From 8 till 14 meters cutting width.

All eco clipper® mowers leave a high quality finish and are contour following, enabling cutting heights from 20 till 90 mm. Mowing capacity is high with speeds ranging from 12 till 25 km/h depending on conditions.

The eco clipper® mowers are light weight on large tyres, which minimizes soil compaction and enables faster grassroot development. The side decks can be shifted in order to change trails.


eco clipper | economic mowing systems built from experience
eco clipper | economic mowing systems built from experience
EC-TM8

Cutting width:   800 cm
Tractor power:  100 hp




eco clipper | economic mowing systems built from experience

EC-TM10

Cutting width:   1005 cm Tractor power:  120 hp

EC-TM12

Cutting width:   1206 cm Tractor power:  140 hp

eco clipper | economic mowing systems built from experience

EC-TM14

Cutting width:   1411 cm Tractor power:  160 hp



eco clipper | economic mowing systems built from experience


All tri-deck models are supplied with a rubber sprung axle with 500/50-17 flotation wheels, side arm collision protection and a generator set fixed to the tractor that allows short turning and extends the life of the PTO shaft. Total machine weights from 2500 till 3500 kg.

We reserve the right to change specifications without prior notice.

Built from experience

The eco clipper® mowing system is an evolution on the mowing system that was originally developed on the turfgrass farm of the Leijenaar family and was launched in 2002. The electrically driven 10m wide rotary mower back at the time was a revolution in the turfgrass industry. Till 2008 the different models of this rotary mower as well as the 10,7 m wide electrically driven cylinder mower have been further developed and marketed by Leijenaar Products BV.

After the ending of Leijenaar Products BV Syb Leijenaar focused on mechatronic product development services and consulting in Leijenaar Solutions. Among other things, the controls of existing electrically driven mowers was simplified, in order to make maintenance and repair easier by the farm mechanics themselves.

Lately came requests for upgrading 15 year old electrically driven rotary mowers. It felt appropriate to turn the learnings into an improved electrical mowing system named eco clipper and make the technology commercially available. The focus is on clean cutting results in all wheather conditions, improved efficiency (up to 20% more fuel efficient), easy maintenance and low cost of ownership. In 2019 several models across the whole eco clipper range have been succesfully introduced to turfgrass farms across Europe and experience their first season.

Refurbished GC5

At the sod farm Direct Gazon in Ysselsteyn, the Netherlands,  they operate five GC5’s. Their two oldest machines from 2003 have been refurbished in 2018 with new flexible decks from eco clipper and a new simplified control system that has been developed collaboratively.

Direct Gazon

Testimonial

Dear Syb,

We are happy with the fact that after 10 years, the technology of the GC continues. The knowledge and expertise about this machine is back. There is no better / cheaper mower than a GC in terms of efficiency and maintenance costs. The mower that we now use with the new simple control system is a big improvement, not malfunctions. The much lighter cutting decks with the more efficient engines on them are much more flexible than the old cutting units. The material used is easy to order. If we want to expand in cutting capacity it will definitely become an eco clipper.

Rob Bruin, co-owner Direct Gazon
