Electric Mowing Systems (2.07–14.11 m)
For large-scale turfgrass management
EC-FM6 x AgXeed
Autonomous Mowers
Front-mounted electric mower for autonomous tractor platforms

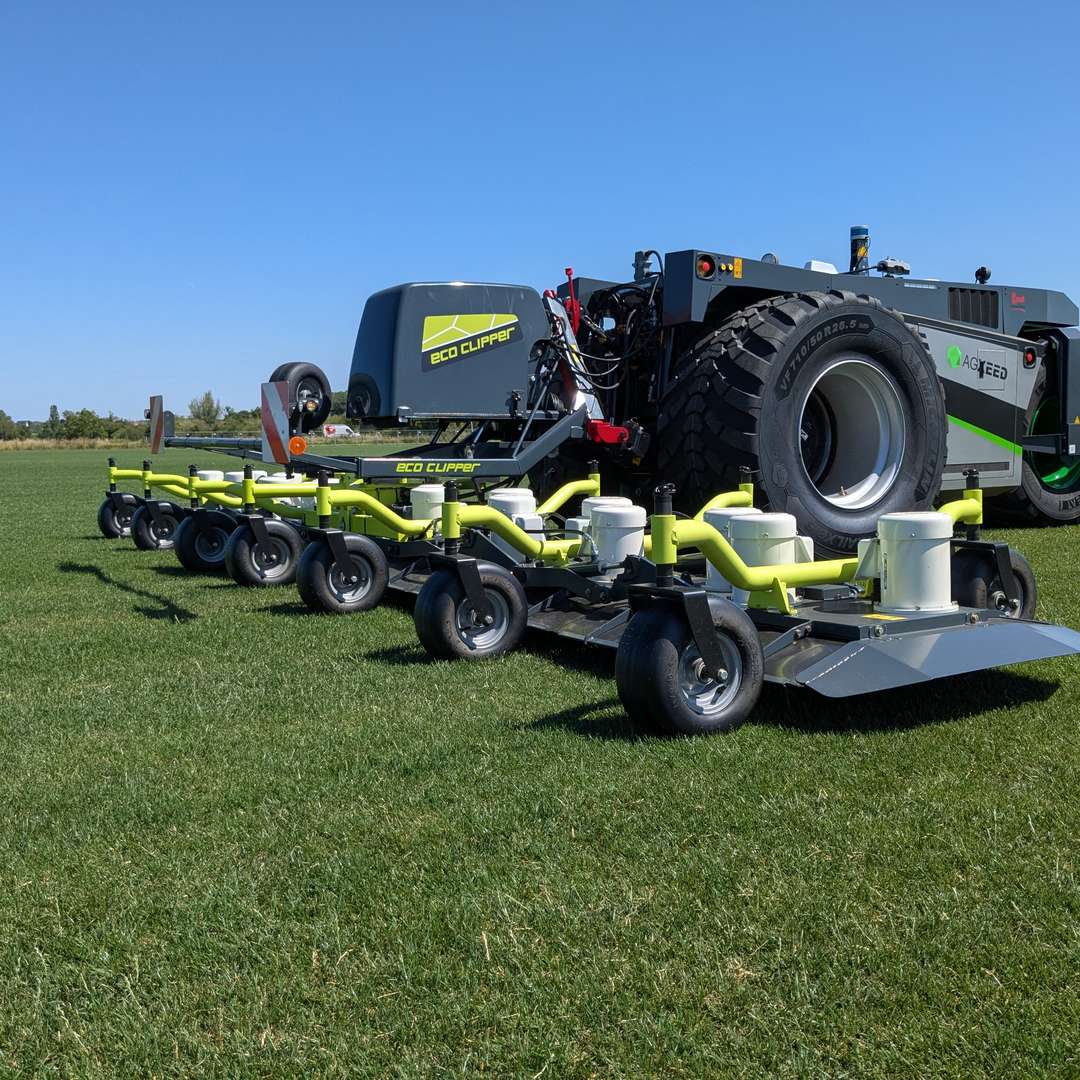

The Eco Clipper FM6 is a 6.15 m front-mounted electric mower designed specifically for integration with AgXeed 3- and 4-wheel autonomous tractor platforms.
Developed in close cooperation with AgXeed, the FM6 control system is fully integrated into the AgXeed vehicle architecture. This enables straightforward configuration, real-time monitoring and coordinated safety functions within the tractor’s autonomous operating environment.
For consistent autonomous safety management, the AgXeed safety bumper is mounted directly to the FM6. This ensures aligned safety zone detection and obstacle response as part of the overall autonomous workflow.
Power supply options
PTO-driven generator (standard)
The electric blade motors are powered via a PTO-driven generator supplied by the tractor. This configuration provides a robust and field-proven solution with independent power generation for the mowing system.
Direct high-voltage DC supply (optional)
Alternatively, the FM6 can be powered directly through the AgXeed 700 V DC outlet. By eliminating intermediate energy conversion stages, this configuration reduces electrical losses, improves overall drivetrain efficiency and minimizes mechanical wear.
Intended use
- Turfgrass production
Autonomous wide-area mowing in turfgrass production environments with repetitive mowing cycles, where consistent cutting quality, predictable operation and high throughput are required. - Airports
Autonomous mowing of large airfield areas using a dedicated high-cut mowing deck with adjustable cutting heights from 5 to 30 cm, suitable for longer grass conditions and safety-critical environments.
Specifications
| Cutting width | 6.15m |
|---|---|
| Cutting height range | 20 -100 mm |
| Max speed | 13 km/h |
